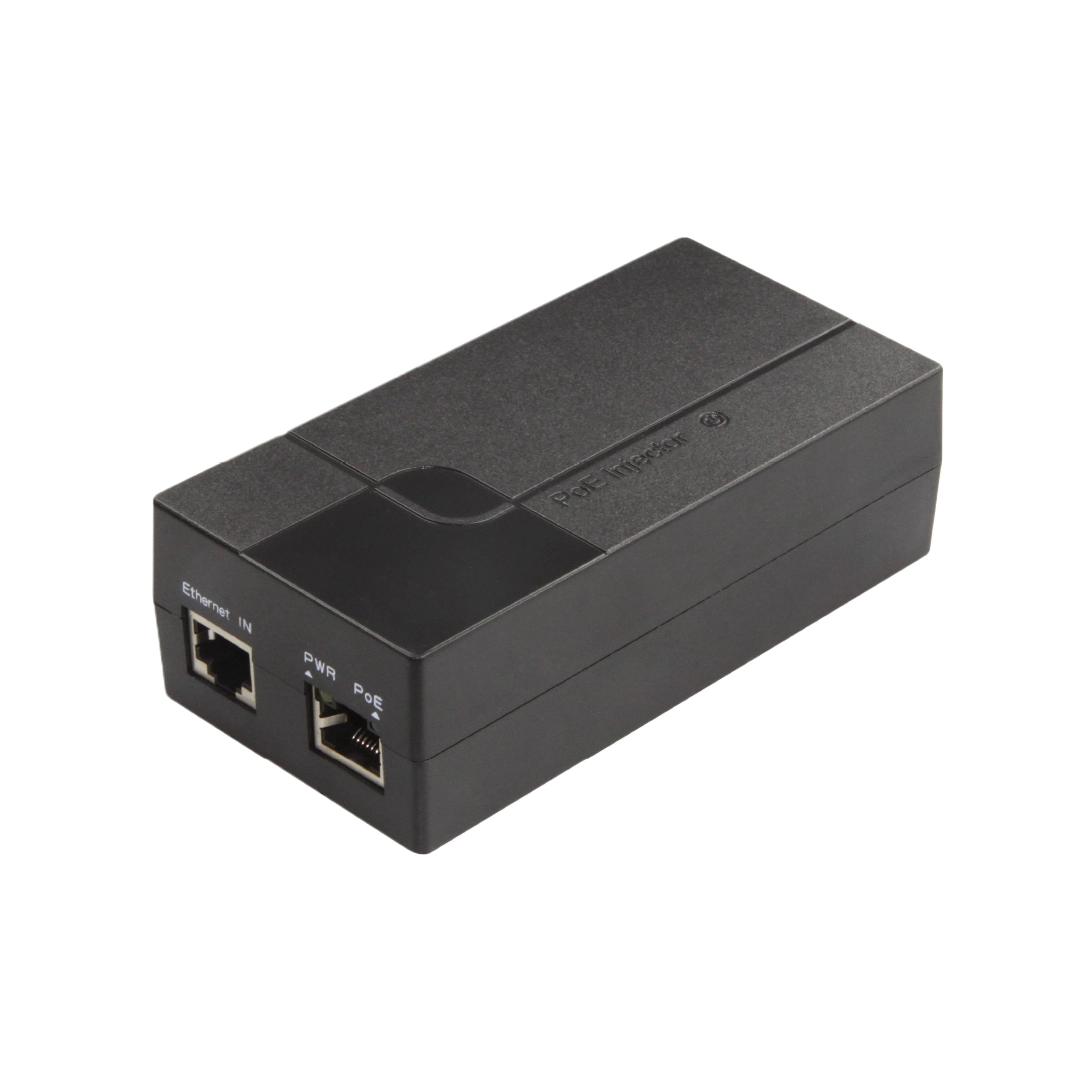

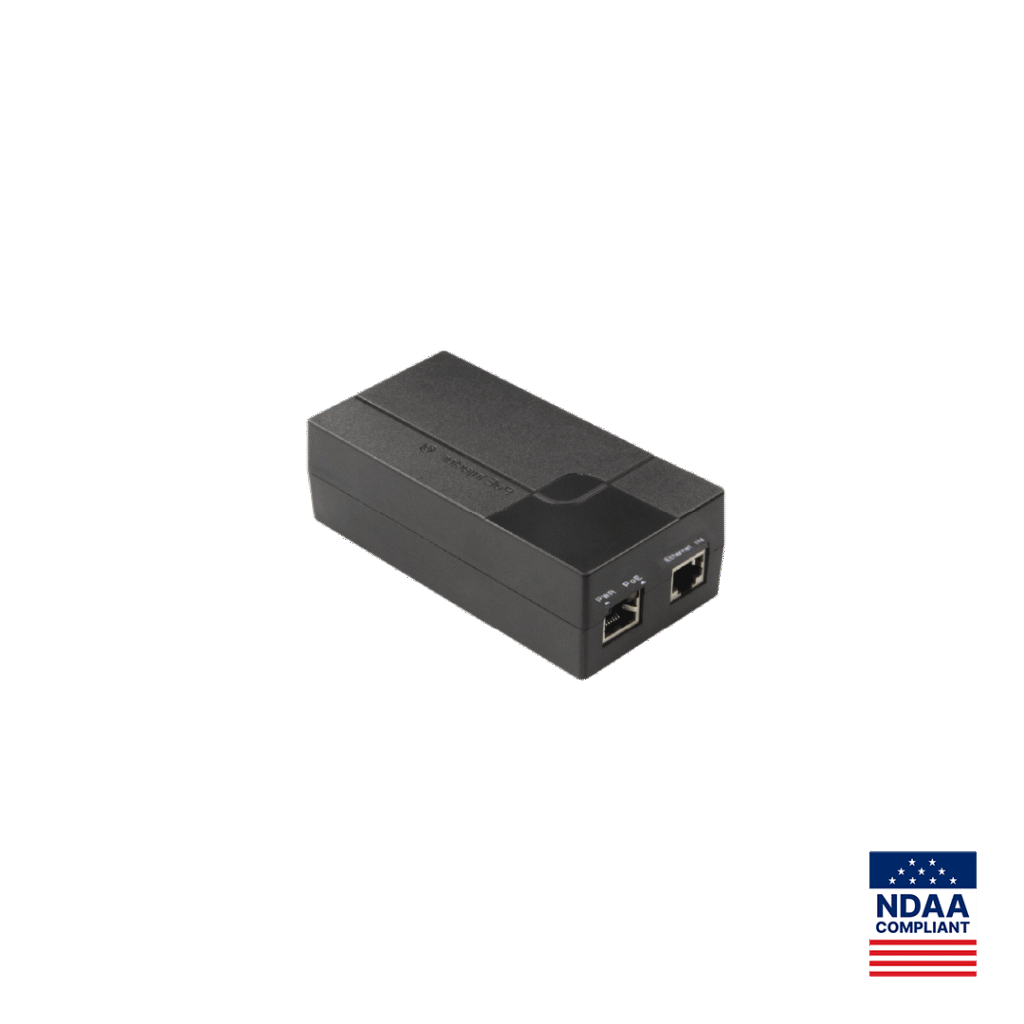

– Single Port Gigabit PoE Injector

• High-Performance PoE Power
  • Single-port PoE injector with 1 × Gigabit PoE output
  • Total power budget: 18W (IEEE 802.3af) / 35W (IEEE 802.3at)
  • Supplies up to 30W per port depending on standard

• Flexible Connectivity
  • 2 × 10/100/1000M RJ45 ports (Ethernet IN + PoE OUT)
  • Supports Cat5e or higher UTP cables up to 100m
  • Compatible with HD IP cameras, APs, VoIP phones & other PoE devices

• Reliable & Safe Power Delivery
  • Compatible with IEEE 802.3af/at PoE standards
  • Supports both mid-span (4/5+, 7/8–) and end-span (1/2+, 3/6–) pinouts
  • Built-in lightning-proof function (secondary protection)
  • Thermal protection: shuts down if temperature exceeds 100°C

• Durable Design
  • Fanless, natural heat dissipation – quiet & stable operation
  • Compact & lightweight design (117 × 51 × 33 mm, 0.14 kg)
  • Works in tough conditions: -20°C to +55°C, 10–90% RH

• Ease of Use & Indicators
  • Plug & play installation – no configuration required
  • LED indicators for PoE working status
  • Suitable for desktop or wall mounting

• Certifications & Warranty
  • CE, FCC Part 15 Class B, RoHS certified
  • 6-year warranty with reliable long-term performance
