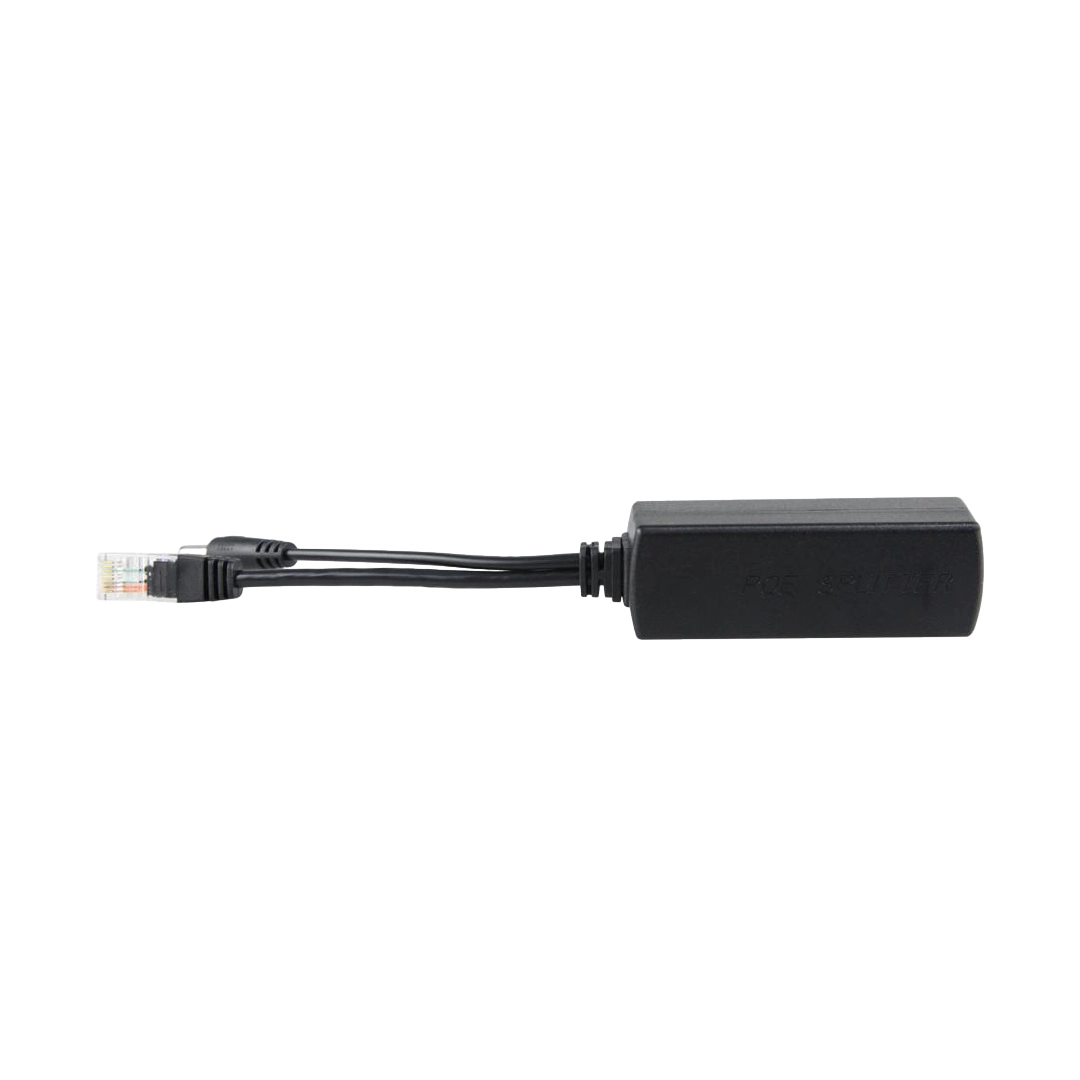

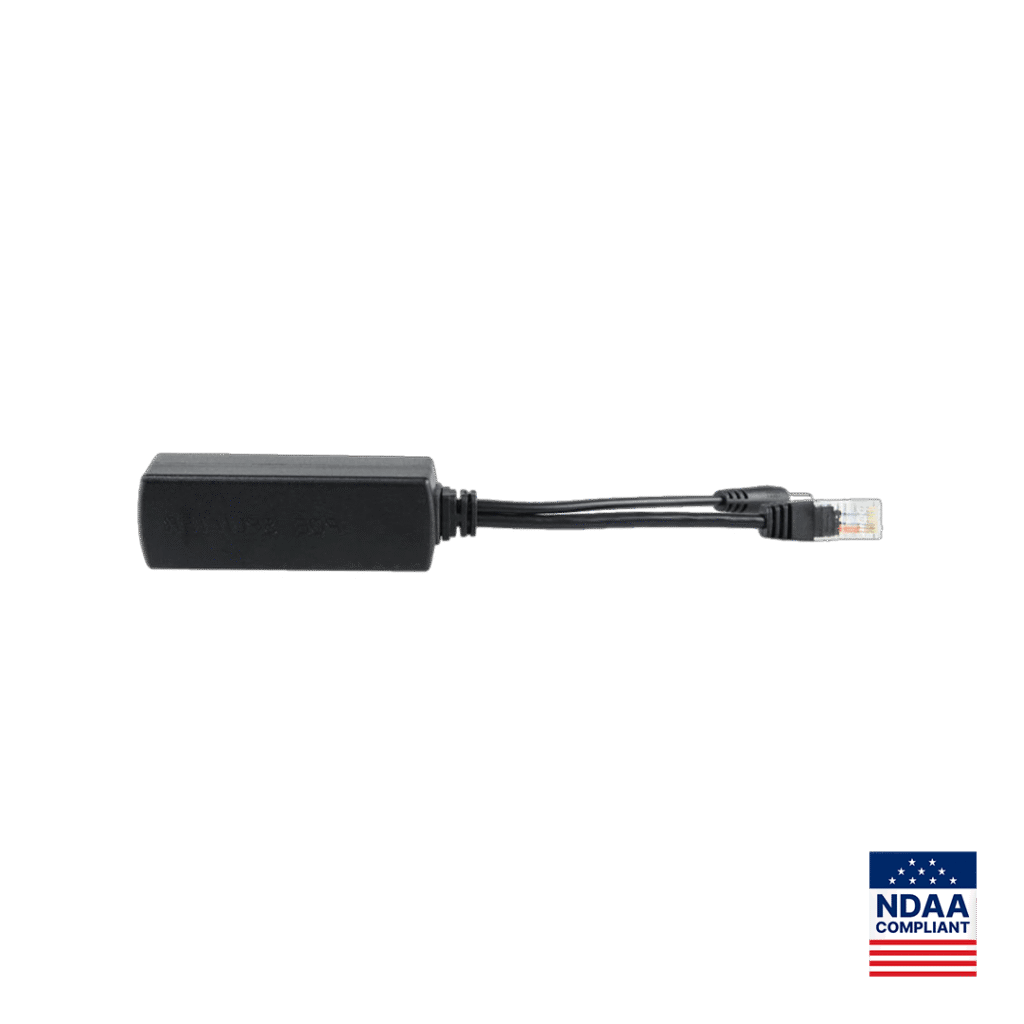

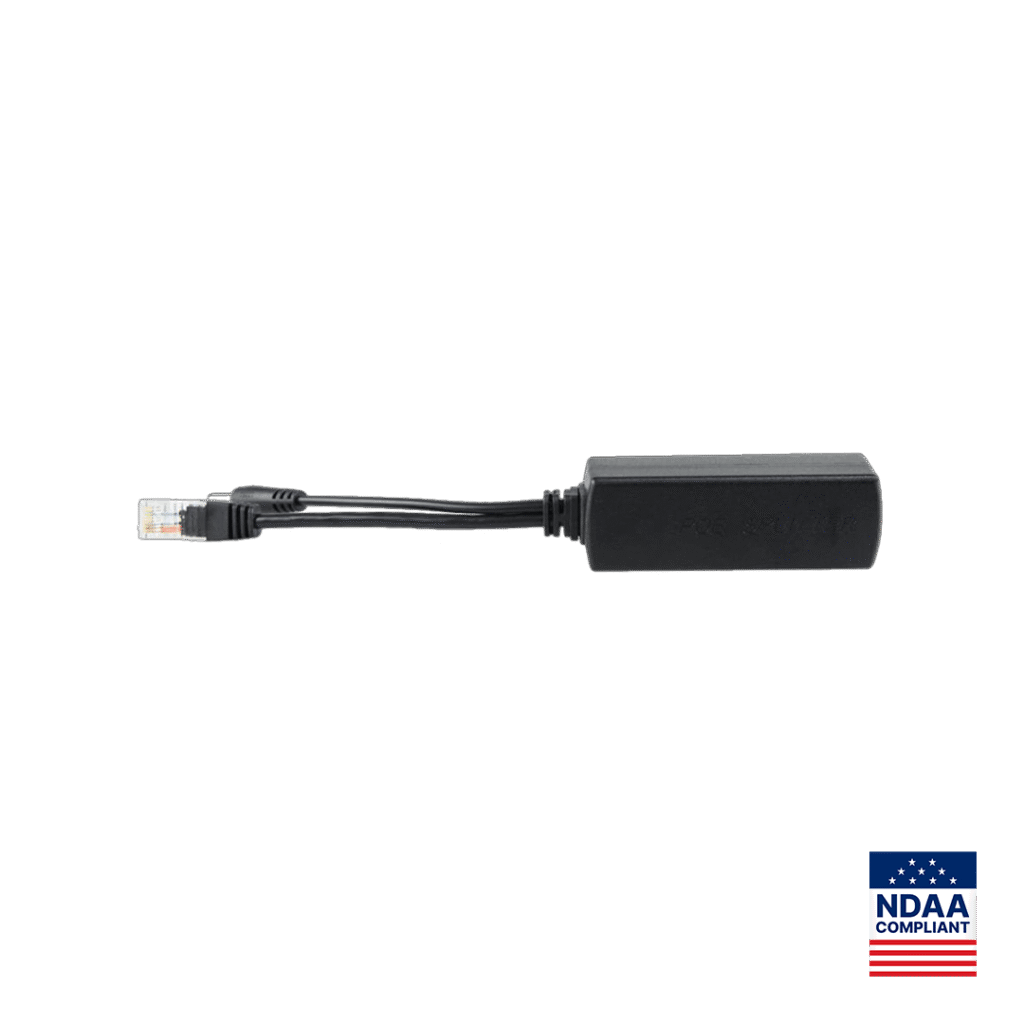

– 10/100M PoE Splitter Cable

• PoE to DC Power Conversion
  • Converts PoE input into DC output (default 12VDC, customizable 5V/9V/24VDC)
  • Output power: 13W max (IEEE 802.3af/at compliant)
  • Provides safe, stable power for non-PoE devices

• Flexible Interfaces
  • 1 × 10/100Base-TX RJ45 (data)
  • 1 × 8P male output port (data)
  • 1 × DC5521 power port (power output)
  • Optional Micro USB power plug available

• Standards & Compatibility
  • Supports IEEE 802.3af/at standards
  • Compatible with mid-span (4/5+, 7/8–) and end-span (1/2+, 3/6–) pinouts
  • Works with PoE switches & injectors for IP cameras, wireless APs, VoIP, and IoT devices

• Reliable Protection
  • Built-in short circuit, over-current, and over-temperature protection
  • 1500V isolation between input & output (CS-PD5202 / PD5202-at models)
  • 4KV lightning protection with IP40 protection level

• Compact & Durable Design
  • ABS + PC flame-retardant housing
  • Dimensions: 85 × 31 × 26 mm (cable length ≤150mm)
  • Lightweight: <0.1 kg
  • Operating conditions: -20°C ~ +55°C, 5–90% RH

• Plug & Play Convenience
  • No configuration required – simple to use
  • Low power consumption: <1W standby
  • LED status indicator for PoE working status

• Certifications & Warranty
  • CE, FCC, RoHS certified
  • 6-year warranty with lifelong maintenance
